Description
|
Power :1000W/1500W |
|
|
Operation mode |
CW |
|
Output power range（%） |
1-100% |
|
Laser Wavelength（nm） |
1075 ± 10 nm |
|
Power Stability |
< 5%（Ambient temp.10°~50°） |
|
Maximum Modulation Frequency |
50kHz |
|

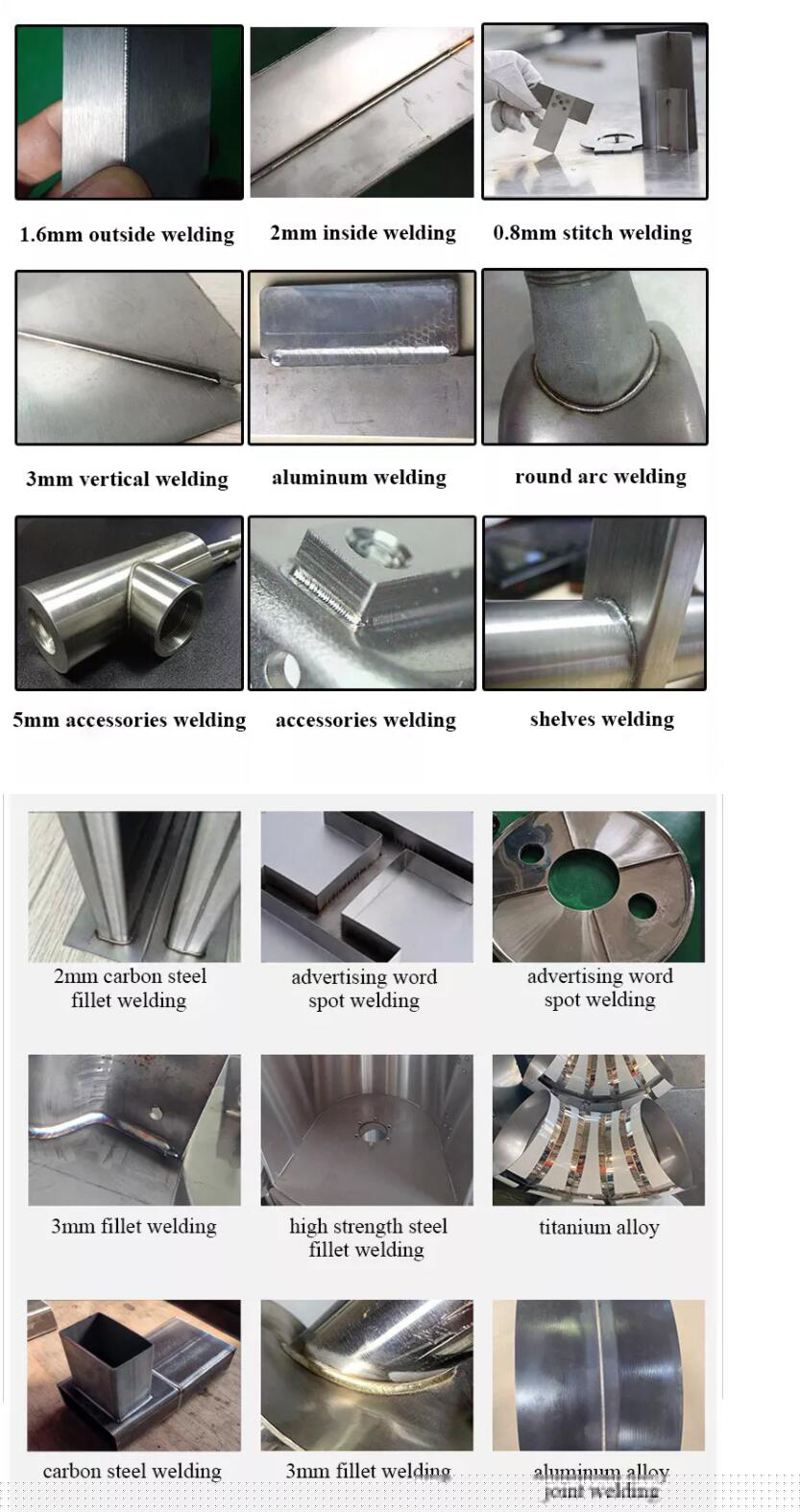

Welding thickness |
1000w 2.5mm/ 1500W 5mm |
|
Laser response time |
< 10us |
|
Guiding laser wavelength（nm） |
650nm |
|
Guiding Laser Tuning range（mW） |
<1mW |
|
Fiber Delivery System |
|
|
Interface type |

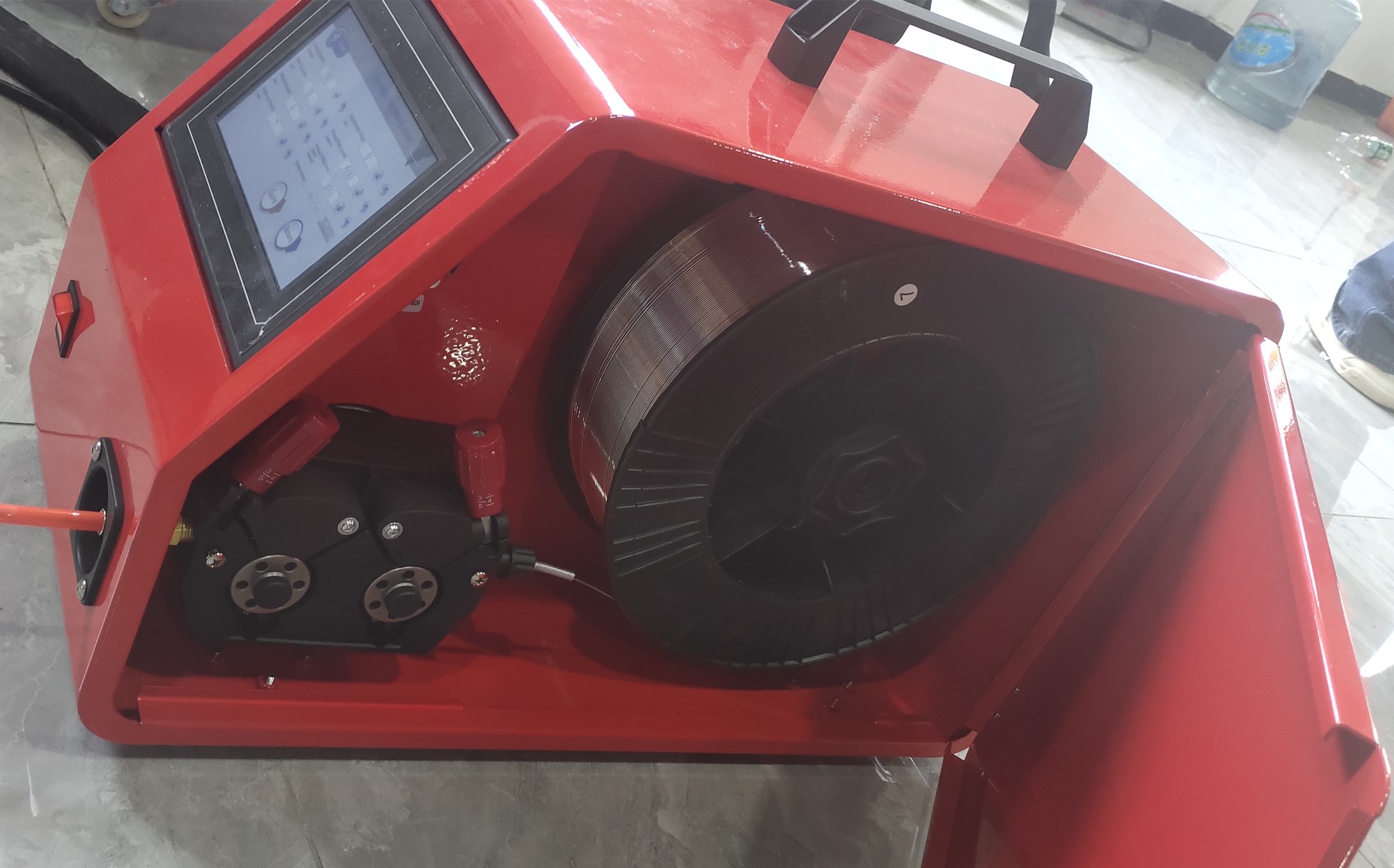

Wire Feeding Handheld weldinghead |
|
Collimating focal length |
50mm |
|
Focus focal length |
120mm |
|
cable length |
10M |
|
Cooling/Protective gas |
Inert gas |
|
Ambient Temperature Range Input voltage |
-10 - 50°C 220VAC/50Hz/60Hz |
|
Electrical Power consumption |
<= 4.8 kW |
|
Ambient Humidity |
<=95 degree |
1. portable design: compact structure, easy to move, can be single person operation.
2. Efficient cleaning: high efficiency of laser cleaning, saving time.
3. non-contact cleaning: laser cleaning without abrasion and non-contact.
4. No pollution: no need to use any chemicals and cleaning solutions, safe and environmentally friendly.
5. Intelligent control: a variety of cleaning modes can be selected, a key intelligent operation.
6. Precise cleaning: precise location and precise size cleaning can be achieved.
